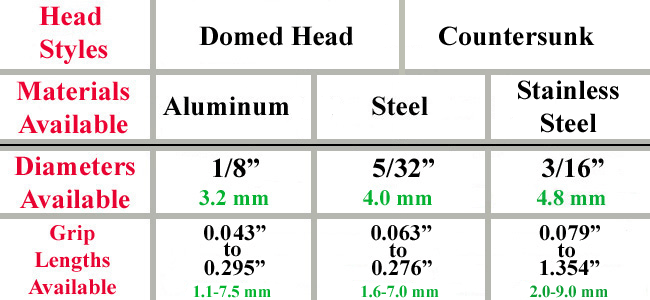

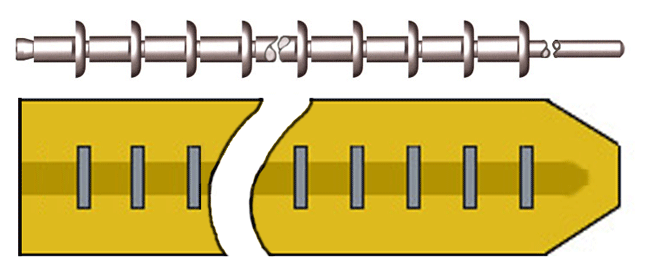

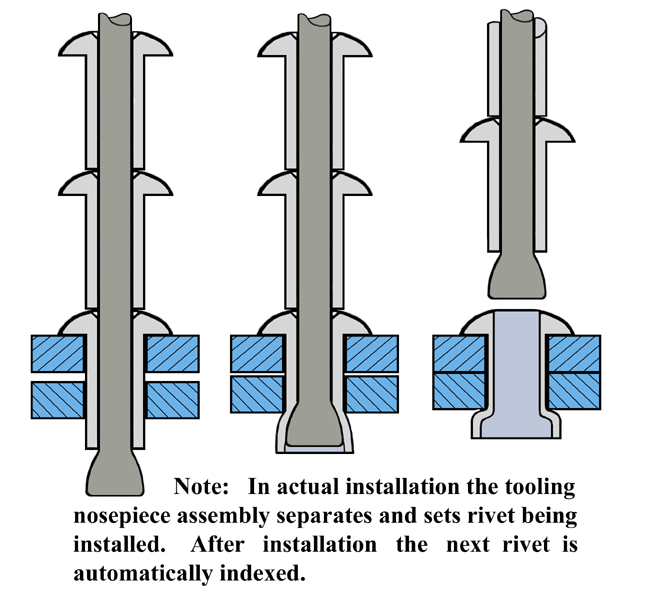

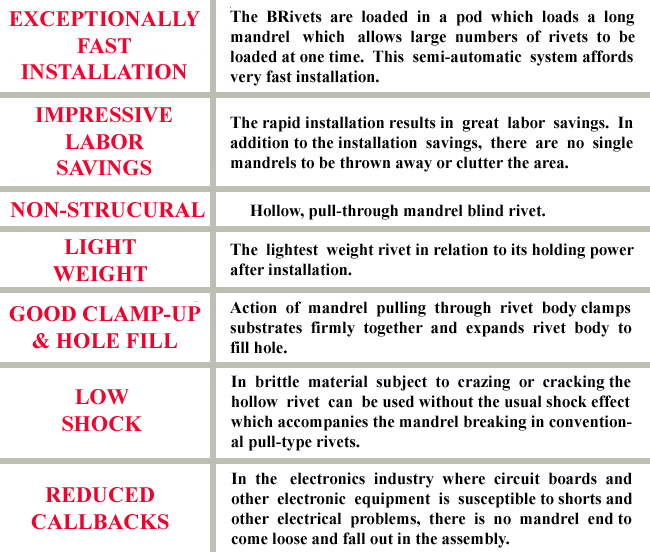

BRivets

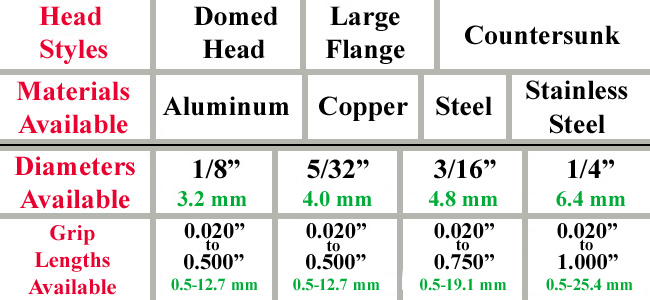

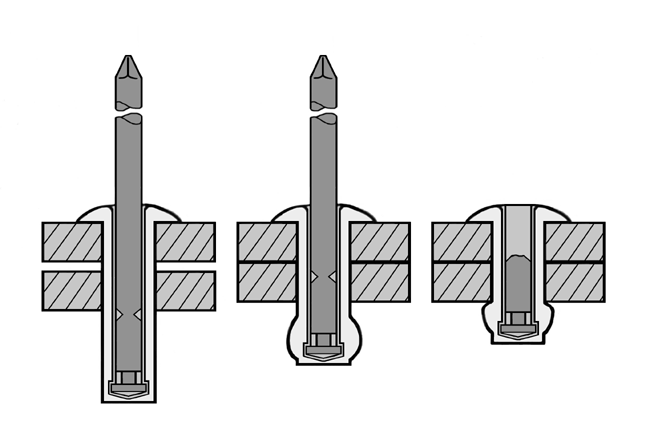

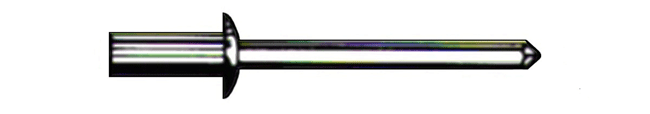

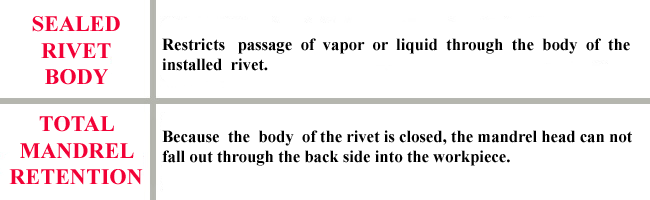

Closed End

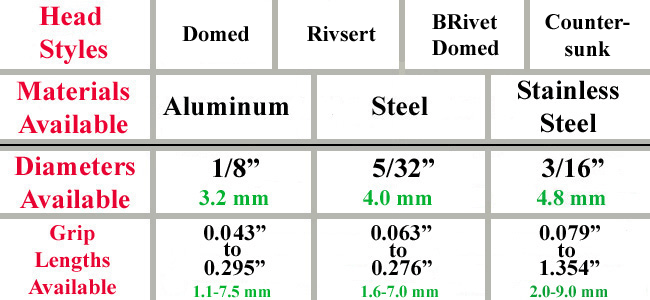

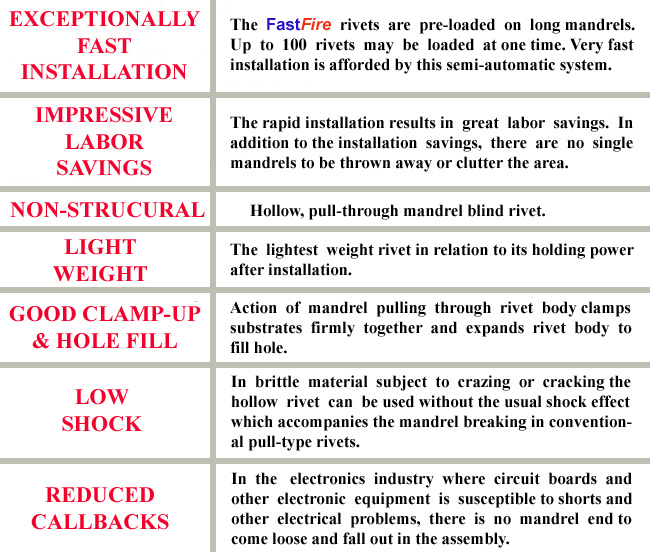

FASTFIRE

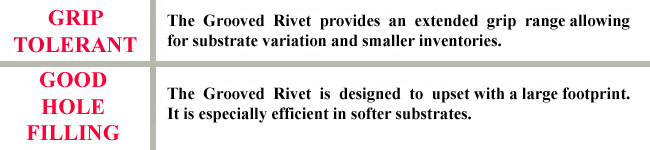

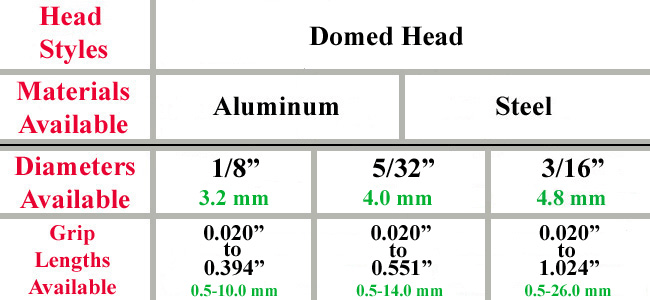

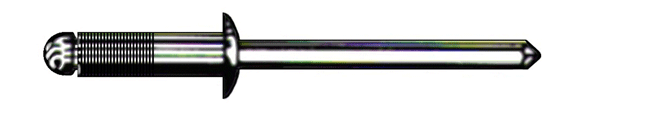

Grooved

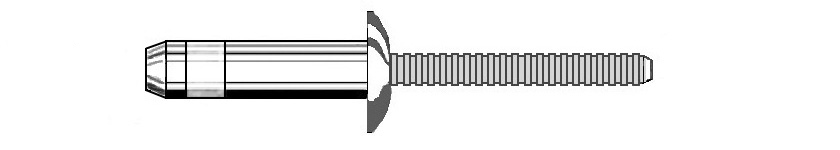

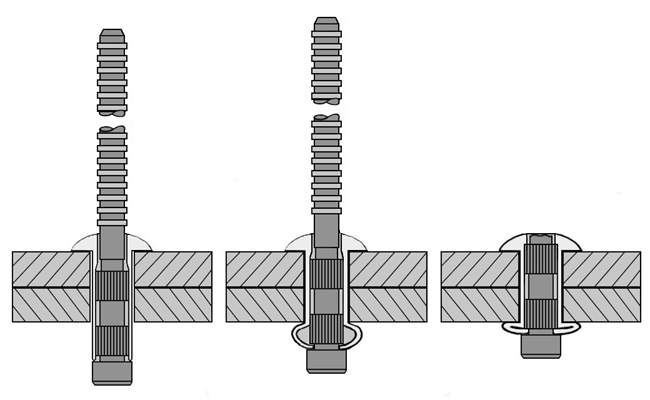

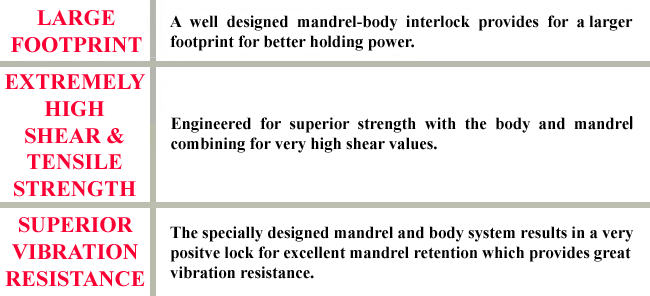

Hemy

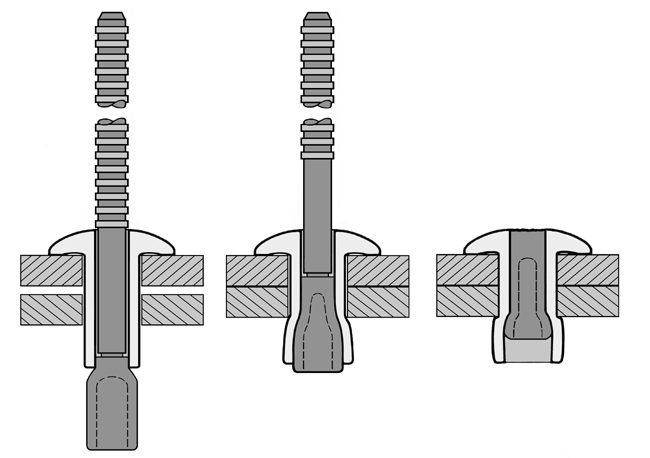

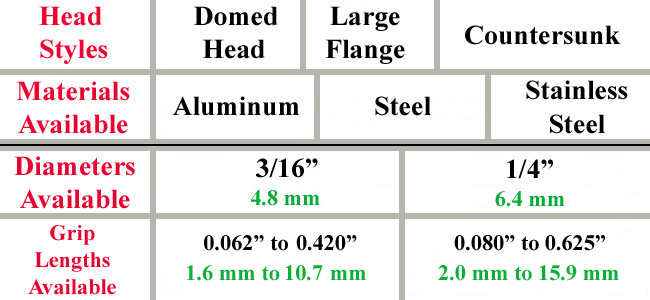

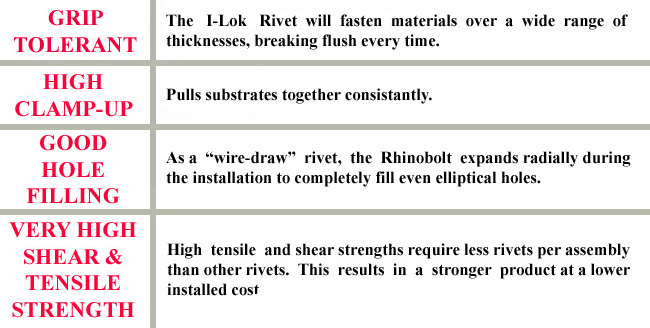

I-Loks

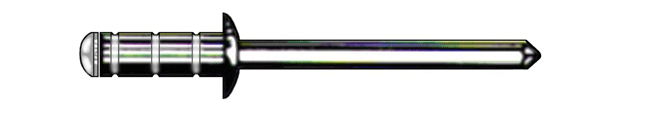

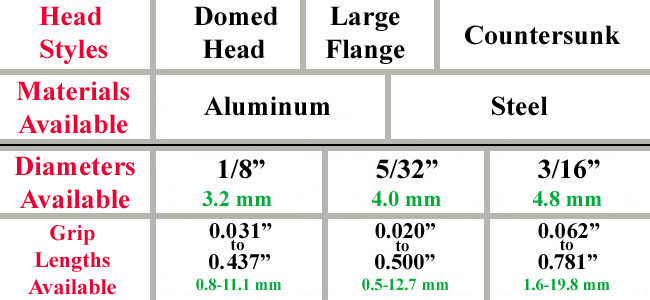

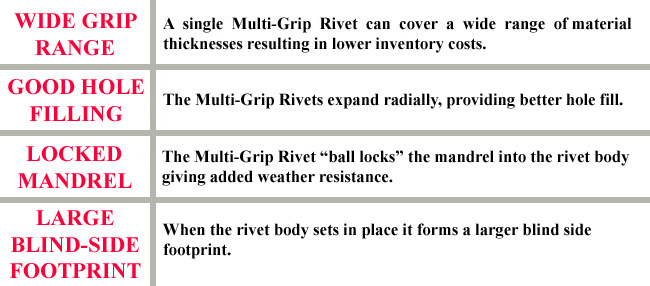

Multi-Grip

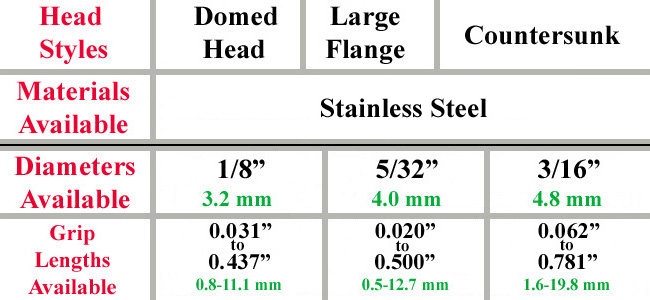

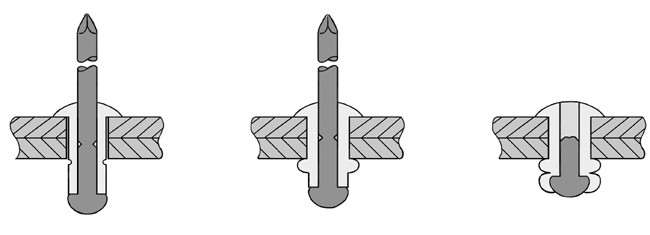

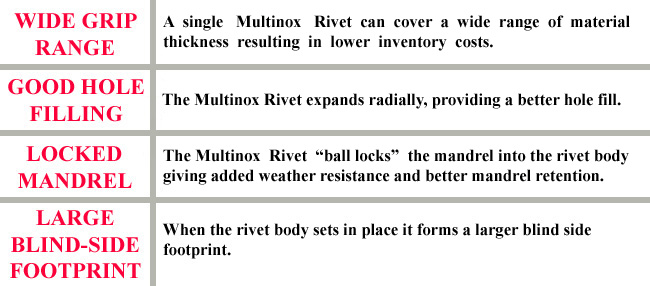

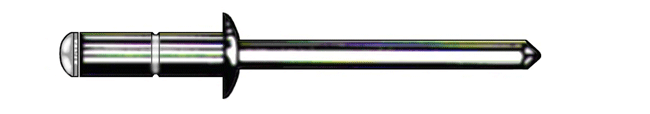

Multinox

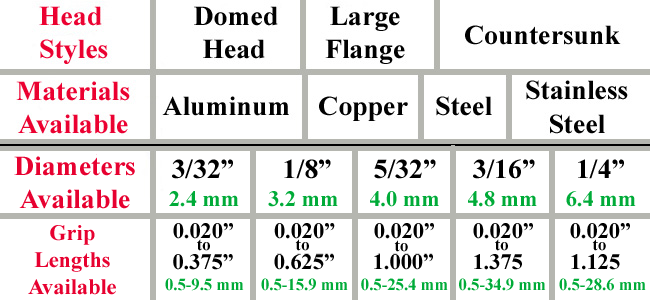

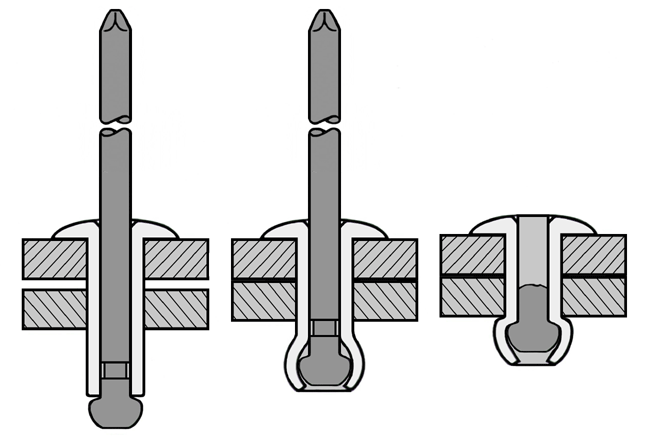

Nail

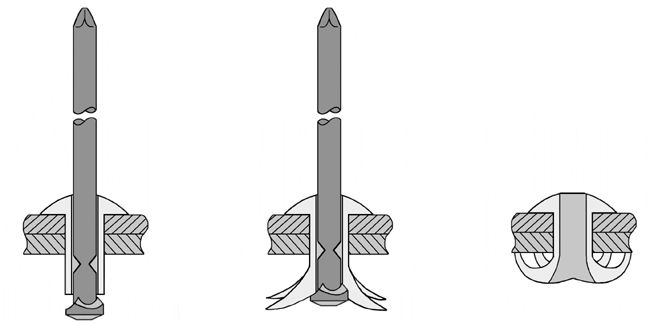

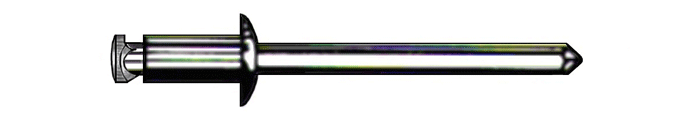

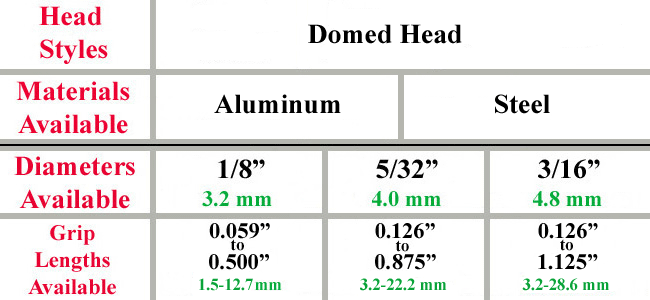

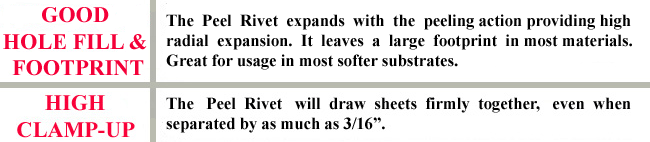

Peel

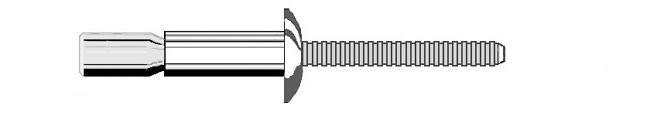

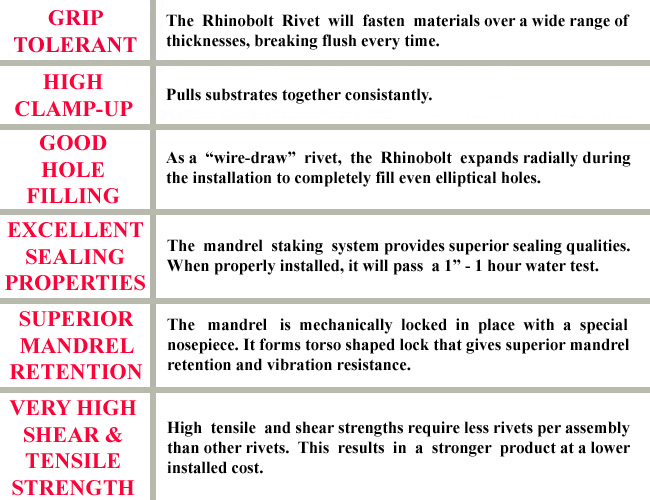

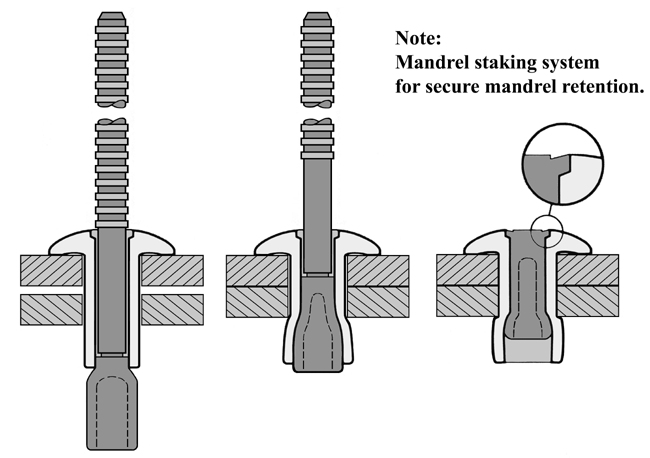

Rhinobolt

Speed

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

Return to Product Table

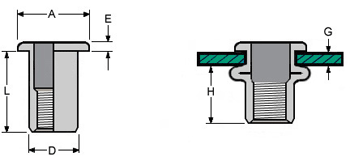

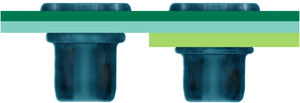

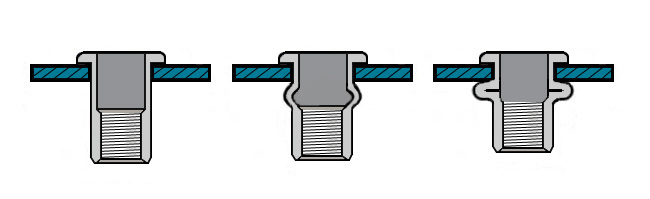

The Optimiser® is a revolutionary insert with great advantages.

A true multi-grip threaded insert . It allows for installation in materials with thicknesses that are inconsistent. It also allows for less inventory by covering several grip ranges.

Along with the multi-grip advantages, it also provides stronger threads and a tighter installation resulting in less thread damage and less possibility of "spin out".

With stronger threads, it allows for less threads providing a smaller back side protrusion, if required.

The revolutionary design and manufacturing process give it superior installation performance. It may be installed in oversized or irregular holes.

It also installs leaving a larger "footprint" than standard threaded inserts.

For more information, please contact one of our sales engineers.

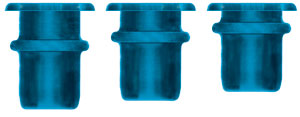

Mult-grip properties	Constant uniformity	Engineered perfection

TorqueTopper is a threaded insert with enhanced thread strength. Where
high torque loads are required, the TorqueTopper gives strengths that are
unsurpassed in the industry. Available in both Imperial and Metric sizes.

For additional information, please contact your IFT sales engineer.

Snubby is a threaded insert designed for areas with minimal clearance. The
Snubby's back side protrusion is no more than most nuts. Due to this expertly designed and precision engineered fastener, it has adequate thread strength with fewer threads allowing very small back side clearances. Available in both Imperial and Metric sizes.

For additional information, please contact your IFT sales engineer.

Return to Product Table

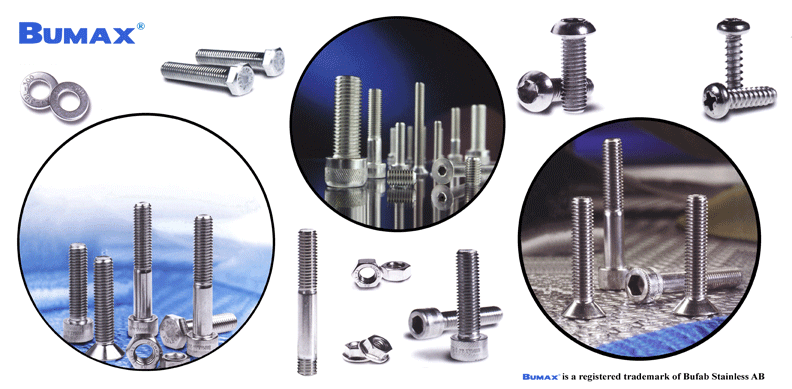

Bumax® Stainless Steel Fasteners are the highest quality, graded stainless steel products made for extreme conditions in various environments where very harsh ambients are encountered.

Through very stringent manufacturing procedures, a stronger, more corrosion resistant product is produced. Smaller size fasteners may be used in place of larger, weaker fasteners resulting in weight and size reduction of the overall product.

They provide longer service life in extreme environments, such as salt water, heat, acidic areas, etc. This results in great savings in maintenance by furnishing much longer service life than standard stainless steel or other materials. Resulting, in some cases, as much as four times the service life or more.

These high grade fasteners are truly green fasteners in this day of environmental awareness.

•Marine Products •Drilling Platforms •Solar Power Applications •Automobile Manufacturing

•Ship Building •Oil Rigs •Paper Pulp Mills •Chemical Industry Applications

•Boats & Yachts •Pressure Vessels •Refineries •Transportation Industry

•Military Applications •Windmill Generators •Heating & Airconditioning •Aircraft Industry

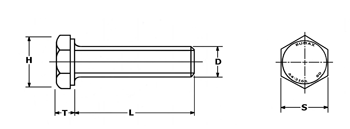

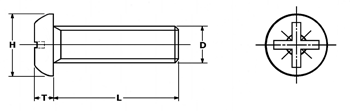

CAP SCREWS (Metric)	POZIDRIV® HEAD MACHINE SCREWS	MACHINE BOLTS (Metric - 88)HEX HEAD	HEX NUTS (Metric)	HEX LOCK NUTS	WASHERS

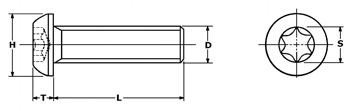

CAP SCREWS (UNC)	TORX® PAN HEAD MACHINE SCREWS	HEX HEAD MACHINE BOLTS (Metric - 109)	HEX NUTS (UNC)	STUDS	WASHERS (Large Area)

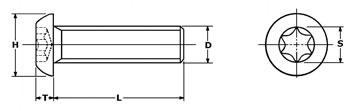

FLAT, HEX SOCKET HEAD MACHINE SCREWS	TORX® BUTTON HEAD MACHINE SCREWS	HEX HEAD MACHINE BOLTS (UNC)	HEX NUTS, FLANGED	THREADED ROD	RETURN TO MAIN FASTENER MENU

Return to Product Table

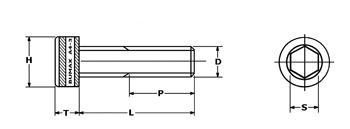

             HEXAGON SOCKET HEAD CAP SCREW
                               80M
                     Bumax® 88-MC6S   * A4-SS 2343-316L HiMo
                                    ENI.4436 * EN/ISO 4762 (DIN 912)

HEXAGON SOCKET HEAD CAP SCREW
100 M
Bumax® 109-MC6S * A4-SS 2343-316L HiMo
ENI.4436 * EN/ISO 4762 (DIN 912)

Size & Threads (mm)	Body Diameter D (mm)	Head Diameter H (mm)	Head Thickness T (mm)	Length L (mm)	Thread Length P (mm)	Hex Size (mm)	Size & Threads (mm)	Body Diameter D (mm)	Head Diameter H (mm)	Head Thickness T (mm)	Length L (mm)	Thread Length P (mm)	Hex Size (mm)
M3 x 0.5	3.0	5.5	3.0	6	6	2.5	M6 x 1	6.0	10.0	6	20	20	5
M3 x 0.5	3.0	5.5	3.0	8	8	2.5	M6 x 1	6.0	10.0	6	30	24	5
M3 x 0.5	3.0	5.5	3.0	10	10	2.5	M6 x 1	6.0	10.0	6	40	24	5
M3 x 0.5	3.0	5.5	3.0	12	12	2.5	M6 x 1	6.0	10.0	6	50	24	5
M3 x 0.5	3.0	5.5	3.0	14	14	2.5	M6 x 1	6.0	10.0	6	60	24	5
M3 x 0.5	3.0	5.5	3.0	16	16	2.5	M6 x 1	6.0	10.0	6	70	24	5
M3 x 0.5	3.0	5.5	3.0	20	18	2.5	M6 x 1	6.0	10.0	6	80	24	5
M3 x 0.5	3.0	5.5	3.0	22	18	2.5	M8 x 1.25	8.0	13.0	8	20	20	6
M3 x 0.5	3.0	5.5	3.0	25	18	2.5	M8 x 1.25	8.0	13.0	8	30	28	6
M3 x 0.5	3.0	5.5	3.0	30	18	2.5	M8 x 1.25	8.0	13.0	8	40	28	6
M4 x 0.7	4.0	7.0	4.0	6	6	3	M8 x 1.25	8.0	13.0	8	50	28	6
M4 x 0.7	4.0	7.0	4.0	8	8	3	M8 x 1.25	8.0	13.0	8	60	28	6
M4 x 0.7	4.0	7.0	4.0	10	10	3	M8 x 1.25	8.0	13.0	8	70	28	6
M4 x 0.7	4.0	7.0	4.0	12	12	3	M8 x 1.25	8.0	13.0	8	80	28	6
M4 x 0.7	4.0	7.0	4.0	16	16	3	M8 x 1.25	8.0	13.0	8	90	28	6
M4 x 0.7	4.0	7.0	4.0	20	20	3	M10 x 1.5	10.0	16.0	10	20	20	8
M4 x 0.7	4.0	7.0	4.0	25	20	3	M10 x 1.5	10.0	16.0	10	30	30	8
M4 x 0.7	4.0	7.0	4.0	30	20	3	M10 x 1.5	10.0	16.0	10	40	32	8
M4 x 0.7	4.0	7.0	4.0	35	20	3	M10 x 1.5	10.0	16.0	10	50	32	8
M4 x 0.7	4.0	7.0	4.0	40	20	3	M10 x 1.5	10.0	16.0	10	60	32	8
M4 x 0.7	4.0	7.0	4.0	50	20	3	M10 x 1.5	10.0	16.0	10	70	32	8
M5 x 0.8	5.0	8.5	5.0	10	10	4	M10 x 1.5	10.0	16.0	10	80	32	8
M5 x 0.8	5.0	8.5	5.0	12	12	4	M10 x 1.5	10.0	16.0	10	90	32	8
M5 x 0.8	5.0	8.5	5.0	16	16	4	M10 x 1.5	10.0	16.0	10	100	32	8
M5 x 0.8	5.0	8.5	5.0	20	20	4	M12 x 1.75	12.0	18.0	10	30	30	10
M5 x 0.8	5.0	8.5	5.0	25	22	4	M12 x 1.75	12.0	18.0	10	40	36	10
M5 x 0.8	5.0	8.5	5.0	30	22	4	M12 x 1.75	12.0	18.0	10	50	36	10
M5 x 0.8	5.0	8.5	5.0	35	22	4	M12 x 1.75	12.0	18.0	10	60	36	10
M5 x 0.8	5.0	8.5	5.0	40	22	4	M12 x 1.75	12.0	18.0	10	70	36	10
M5 x 0.8	5.0	8.5	5.0	45	22	4	M12 x 1.75	12.0	18.0	10	80	36	10
M5 x 0.8	5.0	8.5	5.0	50	22	4	M12 x 1.75	12.0	18.0	10	90	36	10
M5 x 0.8	5.0	8.5	5.0	60	22	4	M12 x 1.75	12.0	18.0	10	100	36	10
M5 x 0.8	5.0	8.5	5.0	70	22	4	M12 x 1.75	12.0	18.0	10	120	36	10
M6 x 1	6.0	10.0	6.0	12	12	5
M6 x 1	6.0	10.0	6.0	14	14	5
M6 x 1	6.0	10.0	6.0	16	16	5
M6 x 1	6.0	10.0	6.0	20	20	5
M6 x 1	6.0	10.0	6.0	25	24	5
M6 x 1	6.0	10.0	6.0	30	24	5
M6 x 1	6.0	10.0	6.0	35	24	5
M6 x 1	6.0	10.0	6.0	40	24	5
M6 x 1	6.0	10.0	6.0	45	24	5
M6 x 1	6.0	10.0	6.0	50	24	5
M6 x 1	6.0	10.0	6.0	60	24	5
M6 x 1	6.0	10.0	6.0	70	24	5
M6 x 1	6.0	10.0	6.0	80	24	5
M6 x 1	6.0	10.0	6.0	90	24	5
M8 x 1.25	8.0	13.0	8.0	16	16	6
M8 x 1.25	8.0	13.0	8.0	20	20	6
M8 x 1.25	8.0	13.0	8.0	25	25	6
M8 x 1.25	8.0	13.0	8.0	30	28	6
M8 x 1.25	8.0	13.0	8.0	35	28	6
M8 x 1.25	8.0	13.0	8.0	40	28	6
M8 x 1.25	8.0	13.0	8.0	45	28	6
M8 x 1.25	8.0	13.0	8.0	50	28	6
M8 x 1.25	8.0	13.0	8.0	60	28	6
M8 x 1.25	8.0	13.0	8.0	70	28	6
M8 x 1.25	8.0	13.0	8.0	80	28	6
M10 x 1.5	10.0	16.0	10.0	16	16	8
M10 x 1.5	10.0	16.0	10.0	20	20	8
M10 x 1.5	10.0	16.0	10.0	25	25	8
M10 x 1.5	10.0	16.0	10.0	30	30	8
M10 x 1.5	10.0	16.0	10.0	35	32	8
M10 x 1.5	10.0	16.0	10.0	40	32	8
M10 x 1.5	10.0	16.0	10.0	45	32	8
M10 x 1.5	10.0	16.0	10.0	50	32	8
M10 x 1.5	10.0	16.0	10.0	55	32	8
M10 x 1.5	10.0	16.0	10.0	60	32	8
M10 x 1.5	10.0	16.0	10.0	65	32	8
M10 x 1.5	10.0	16.0	10.0	70	32	8
M10 x 1.5	10.0	16.0	10.0	75	32	8
M10 x 1.5	10.0	16.0	10.0	80	32	8
M10 x 1.5	10.0	16.0	10.0	90	32	8
M10 x 1.5	10.0	16.0	10.0	100	32	8
M10 x 1.5	10.0	16.0	10.0	120	32	8
M12 x 1.75	12.0	18.0	12.0	20	20	10
M12 x 1.75	12.0	18.0	12.0	25	25	10
M12 x 1.75	12.0	18.0	12.0	30	30	10
M12 x 1.75	12.0	18.0	12.0	35	35	10
M12 x 1.75	12.0	18.0	12.0	40	36	10
M12 x 1.75	12.0	18.0	12.0	45	36	10
M12 x 1.75	12.0	18.0	12.0	50	36	10
M12 x 1.75	12.0	18.0	12.0	60	36	10
M12 x 1.75	12.0	18.0	12.0	70	36	10
M12 x 1.75	12.0	18.0	12.0	80	36	10
M12 x 1.75	12.0	18.0	12.0	90	36	10
M12 x 1.75	12.0	18.0	12.0	100	36	10
M12 x 1.75	12.0	18.0	12.0	120	36	10
M16 x 2	16.0	24.0	16.0	30	30	14
M16 x 2	16.0	24.0	16.0	35	35	14
M16 x 2	16.0	24.0	16.0	40	40	14
M16 x 2	16.0	24.0	16.0	45	44	14
M16 x 2	16.0	24.0	16.0	50	44	14
M16 x 2	16.0	24.0	16.0	55	44	14
M16 x 2	16.0	24.0	16.0	60	44	14
M16 x 2	16.0	24.0	16.0	70	44	14
M16 x 2	16.0	24.0	16.0	80	44	14
M16 x 2	16.0	24.0	16.0	90	44	14
M16 x 2	16.0	24.0	16.0	100	44	14
M16 x 2	16.0	24.0	16.0	110	44	14
M16 x 2	16.0	24.0	16.0	120	44	14
M20 x 2.5	20.0	30.0	20.0	30	30	17
M20 x 2.5	20.0	30.0	20.0	40	40	17
M20 x 2.5	20.0	30.0	20.0	45	45	17
M20 x 2.5	20.0	30.0	20.0	50	50	17
M20 x 2.5	20.0	30.0	20.0	60	52	17
M20 x 2.5	20.0	30.0	20.0	70	52	17
M20 x 2.5	20.0	30.0	20.0	80	52	17
M20 x 2.5	20.0	30.0	20.0	90	52	17
M20 x 2.5	20.0	30.0	20.0	100	52	17
M20 x 2.5	20.0	30.0	20.0	140	52	17
M24 x 3	24.0	36.0	24.0	50	50	19
M24 x 3	24.0	36.0	24.0	60	60	19
M24 x 3	24.0	36.0	24.0	70	60	19
M24 x 3	24.0	36.0	24.0	80	60	19
M24 x 3	24.0	36.0	24.0	90	60	19
M24 x 3	24.0	36.0	24.0	100	60	19
M24 x 3	24.0	36.0	24.0	120	60	19
M24 x 3	24.0	36.0	24.0	140	60	19
M24 x 3	24.0	36.0	24.0	150	60	19

Return to Product Table

HEXAGON SOCKET HEAD CAP SCREW
                                      80    UNC
          Bumax® 88-UC6S   * A4-SS 2343-316L HiMo
                        ENI.4436 * SS 1960 (ANSI B18.3)

Size & Threads	Body Diameter D (in.)	Head Diameter H (in.)	Head Thickness T (in.)	Length L (in.)	Thread Length P (in.)	Hex Size (in.)
1/4 - 20	0.25	0.374	0.248	0.500	0.500	3/16
1/4 - 20	0.25	0.374	0.248	0.625	0.625	3/16
1/4 - 20	0.25	0.374	0.248	0.750	0.750	3/16
1/4 - 20	0.25	0.374	0.248	1.000	0.984	3/16
1/4 - 20	0.25	0.374	0.248	1.250	0.984	3/16
1/4 - 20	0.25	0.374	0.248	1.500	0.984	3/16
5/16 - 18	0.3125	0.469	0.311	0.500	0.500	1/4
5/16 - 18	0.3125	0.469	0.311	0.625	0.625	1/4
5/16 - 18	0.3125	0.469	0.311	0.750	0.750	1/4
5/16 - 18	0.3125	0.469	0.311	0.875	0.875	1/4
5/16 - 18	0.3125	0.469	0.311	1.000	1.000	1/4
5/16 - 18	0.3125	0.469	0.311	1.250	1.102	1/4
5/16 - 18	0.3125	0.469	0.311	1.500	1.102	1/4
5/16 - 18	0.3125	0.469	0.311	2.000	1.102	1/4
3/8 - 16	0.375	0.563	0.374	0.750	0.750	5/16
3/8 - 16	0.375	0.563	0.374	0.875	0.875	5/16
3/8 - 16	0.375	0.563	0.374	1.000	1.000	5/16
3/8 - 16	0.375	0.563	0.374	1.250	1.250	5/16
3/8 - 16	0.375	0.563	0.374	1.500	1.496	5/16
3/8 - 16	0.375	0.563	0.374	2.000	1.496	5/16
3/8 - 16	0.375	0.563	0.374	2.500	1.496	5/16
1/2 - 13	0.500	0.748	0.500	1.000	1.000	3/8
1/2 - 13	0.500	0.748	0.500	1.250	1.250	3/8
1/2 - 13	0.500	0.748	0.500	1.500	1.496	3/8
1/2 - 13	0.500	0.748	0.500	2.000	1.496	3/8
1/2 - 13	0.500	0.748	0.500	3.000	1.496	3/8
5/8 - 11	0.625	0.937	0.626	1.250	1.250	1/2
5/8 - 11	0.625	0.937	0.626	1.500	1.500	1/2
5/8 - 11	0.625	0.937	0.626	2.000	2.000	1/2
5/8 - 11	0.625	0.937	0.626	2.250	2.008	1/2
3/4 - 10	0.750	1.126	0.748	2.000	2.000	5/8
3/4 - 10	0.750	1.126	0.748	2.500	2.244	5/8
3/4 - 10	0.750	1.126	0.748	3.000	2.244	5/8
7/8 - 9	0.875	1.311	0.874	2.000	2.000	3/4
7/8 - 9	0.875	1.311	0.874	3.000	2.992	3/4
7/8 - 9	0.875	1.311	0.874	4.000	2.992	3/4
1 - 8	1.000	1.500	1.000	2.000	2.000	3/4
1 - 8	1.000	1.500	1.000	3.000	2.992	3/4
1 - 8	1.000	1.500	1.00	4.000	2.992	3/4

Return to Product Table

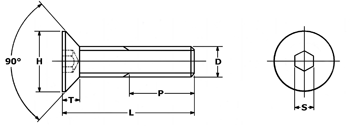

HEX SOCKET, FLAT HEAD MACHINE SCREWS
Bumax® 88-MF6S
A4-SS 2343-316L HiMo
ENI.4436 * EN/ISO 10642 (DIN 7791)

Size & Threads (mm)	Body Diameter D (mm)	Head Diameter H (mm)	Head Thickness T (mm)	Length L (mm)	Thread Length L (mm)	Hex size (mm)
M3 x 0.5	3.0	6.72	1.86	6	6	2
M3 x 0.5	3.0	6.72	1.86	8	8	2
M3 x 0.5	3.0	6.72	1.86	10	10	2
M3 x 0.5	3.0	6.72	1.86	12	12	2
M3 x 0.5	3.0	6.72	1.86	16	16	2
M3 x 0.5	3.0	6.72	1.86	20	18	2
M4 x 0.7	4.0	8.96	2.48	10	10	2.5
M4 x 0.7	4.0	8.96	2.48	12	12	2.5
M4 x 0.7	4.0	8.96	2.48	16	16	2.5
M4 x 0.7	4.0	8.96	2.48	20	20	2.5
M4 x 0.7	4.0	8.96	2.48	25	20	2.5
M4 x 0.7	4.0	8.96	2.48	30	20	2.5
M5 x 0.8	5.0	11.20	3.10	10	10	3
M5 x 0.8	5.0	11.20	3.10	12	12	3
M5 x 0.8	5.0	11.20	3.10	16	16	3
M5 x 0.8	5.0	11.20	3.10	20	20	3
M5 x 0.8	5.0	11.20	3.10	25	22	3
M5 x 0.8	5.0	11.20	3.10	30	22	3
M5 x 0.8	5.0	11.20	3.10	50	22	3
M6 x 1	6.0	13.44	3.72	10	10	3
M6 x 1	6.0	13.44	3.72	12	12	4
M6 x 1	6.0	13.44	3.72	16	16	4
M6 x 1	6.0	13.44	3.72	20	20	4
M6 x 1	6.0	13.44	3.72	25	24	4
M6 x 1	6.0	13.44	3.72	30	24	4
M6 x 1	6.0	13.44	3.72	40	24	4
M6 x 1	6.0	13.44	3.72	50	24	4
M6 x 1	6.0	13.44	3.72	60	24	4
M8 x 1.25	8.0	17.92	4.96	16	16	5
M8 x 1.25	8.0	17.92	4.96	20	20	5
M8 x 1.25	8.0	17.92	4.96	25	25	5
M8 x 1.25	8.0	17.92	4.96	30	28	5
M8 x 1.25	8.0	17.92	4.96	35	28	5
M8 x 1.25	8.0	17.92	4.96	40	28	5
M8 x 1.25	8.0	17.92	4.96	50	28	5
M8 x 1.25	8.0	17.92	4.96	60	28	5
M8 x 1.25	8.0	17.92	4.96	70	28	5
M10 x 1.5	10.0	22.4	6.2	20	20	6
M10 x 1.5	10.0	22.4	6.2	25	25	6
M10 x 1.5	10.0	22.4	6.2	30	30	6
M10 x 1.5	10.0	22.4	6.2	35	32	6
M10 x 1.5	10.0	22.4	6.2	40	32	6
M10 x 1.5	10.0	22.4	6.2	50	32	6
M12 x 1.75	12.0	26.88	7.44	30	30	8
M12 x 1.75	12.0	26.88	7.44	40	36	8
M12 x 1.75	12.0	26.88	7.44	45	36	8
M12 x 1.75	12.0	26.88	7.44	60	36	8
M12 x 1.75	12.0	26.88	7.44	70	36	8
M16 x 2	16	33.6	8.80	40	40	10
M16 x 2	16	33.6	8.80	50	44	10
M16 x 2	16	33.6	8.80	60	44	10
M16 x 2	16	33.6	8.80	70	44	10
M16 x 2	16	33.6	8.80	80	44	10
M16 x 2	16	33.6	8.80	100	44	10

Return to Product Table

POZIDRIV® PAN HEAD TAPTITE MACHINE SCREWS
Bumax® Hard-MRT-TT
A4-SS 2343-316L HiMo
ENI.4436

Size & Threads (mm)	Body Diameter D (mm)	Head Diameter H (mm)	Head Thickness T (mm)	Length L (mm)	DRIVER size
M3 x 0.5	3.0	5.6	2.4	6	1
M3 x 0.5	3.0	5.6	2.4	8	1
M3 x 0.5	3.0	5.6	2.4	10	1
M3 x 0.5	3.0	5.6	2.4	12	1
M4 x 0.7	4.0	8.0	3.1	8	2
M4 x 0.7	4.0	8.0	3.1	10	2
M4 x 0.7	4.0	8.0	3.1	12	2
M4 x 0.7	4.0	8.0	3.1	16	2
M5 x 0.8	5.0	9.5	3.7	10	2
M5 x 0.8	5.0	9.5	3.7	12	2
M5 x 0.8	5.0	9.5	3.7	16	2
M5 x 0.8	5.0	9.5	3.7	20	2
M6 x 1	6.0	12	4.6	12	3
M6 x 1	6.0	12	4.6	16	3
M6 x 1	6.0	12	4.6	20	3
M6 x 1	6.0	12	4.6	25	3

Return to Product Table

TORX® PAN HEAD TAPTITE MACHINE SCREWS
Bumax® Hard MRT-TT
A4-SS 2343-316L HiMo
ENI.4436

TORX® PAN HEAD TAPTITE MACHINE SCREWS
Bumax® MRT-TT
A4-SS 2343-316L HiMo
ENI.4436

Size & Threads	Body Diameter D (mm)	Head Diameter H (mm)	Head Thickness T (mm)	Length L (mm)	Driver Number	Size & Threads	Body Diameter D (mm)	Head Diameter H (mm)	Head Thickness T (mm)	Length L (mm)	Driver Number
M3 x 0.5	3.0	5.6	2.4	6	T10	M3 x 0.5	3.0	5.6	2.4	6	T10
M3 x 0.5	3.0	5.6	2.4	8	T10	M3 x 0.5	3.0	5.6	2.4	8	T10
M3 x 0.5	3.0	5.6	2.4	10	T10	M3 x 0.5	3.0	5.6	2.4	10	T10
M3 x 0.5	3.0	5.6	2.4	12	T10	M3 x 0.5	3.0	5.6	2.4	12	T10
M4 x 0.7	4.0	8	3.1	8	T20	M4 x 0.7	4.0	8	3.1	8	T20
M4 x 0.7	4.0	8	3.1	10	T20	M4 x 0.7	4.0	8	3.1	10	T20
M4 x 0.7	4.0	8	3.1	12	T20	M4 x 0.7	4.0	8	3.1	12	T20
M4 x 0.7	4.0	8	3.1	16	T20	M4 x 0.7	4.0	8	3.1	16	T20
M4 x 0.7	4.0	8	3.1	20	T20	M4 x 0.7	4.0	8	3.1	20	T20
M5 x 0.8	5.0	9.5	3.7	10	T25	M5 x 0.8	5.0	9.5	3.7	10	T25
M5 x 0.8	5.0	9.5	3.7	12	T25	M5 x 0.8	5.0	9.5	3.7	12	T25
M5 x 0.8	5.0	9.5	3.7	16	T25	M5 x 0.8	5.0	9.5	3.7	16	T25
M5 x 0.8	5.0	9.5	3.7	20	T25	M5 x 0.8	5.0	9.5	3.7	20	T25
M5 x 0.8	5.0	9.5	3.7	25	T25	M5 x 0.8	5.0	9.5	3.7	25	T25
M6 x 1	6.0	12	4.6	12	T30	M6 x 1	6.0	12	4.6	12	T30
M6 x 1	6.0	12	4.6	16	T30	M6 x 1	6.0	12	4.6	16	T30
M6 x 1	6.0	12	4.6	20	T30	M6 x 1	6.0	12	4.6	20	T30
M6 x 1	6.0	12	4.6	25	T30	M6 x 1	6.0	12	4.6	25	T30
M6 x 1	6.0	12	4.6	30	T30	M6 x 1	6.0	12	4.6	30	T30
M8 x 1.25	8.0	16	6.0	16	T45	M8 x 1.25	8.0	16	6.0	16	T45
M8 x 1.25	8.0	16	6.0	20	T45	M8 x 1.25	8.0	16	6.0	20	T45
M8 x 1.25	8.0	16	6.0	25	T45	M8 x 1.25	8.0	16	6.0	25	T45
M8 x 1.25	8.0	16	6.0	30	T45	M8 x 1.25	8.0	16	6.0	30	T45
M8 x 1.25	8.0	16	6.0	40	T45	M8 x 1.25	8.0	16	6.0	40	T45

Return to Product Table

TORX® BUTTON HEAD MACHINE SCREWS
80 M
Bumax® 88-MKT
A4-SS 2343-316L HiMo
ENI.4436 * DIN/EN/ISO 7380

Size & Threads	Body Diameter D (mm)	Head Diameter H (mm)	Head Thickness T (mm)	Length L (mm)	Driver Number
M5 x 0.8	5.0	9.5	2.75	8	T25
M5 x 0.8	5.0	9.5	2.75	10	T25
M5 x 0.8	5.0	9.5	2.75	12	T25
M5 x 0.8	5.0	9.5	2.75	16	T25
M5 x 0.8	5.0	9.5	2.75	20	T25
M5 x 0.8	5.0	9.5	2.75	25	T25
M5 x 0.8	5.0	9.5	2.75	30	T25
M5 x 0.8	5.0	9.5	2.75	40	T25
M5 x 0.8	5.0	9.5	2.75	50	T25
M6 x 1	6.0	10.5	3.3	10	T30
M6 x 1	6.0	10.5	3.3	12	T30
M6 x 1	6.0	10.5	3.3	14	T30
M6 x 1	6.0	10.5	3.3	16	T30
M6 x 1	6.0	10.5	3.3	20	T30
M6 x 1	6.0	10.5	3.3	25	T30
M6 x 1	6.0	10.5	3.3	30	T30
M6 x 1	6.0	10.5	3.3	35	T30
M6 x 1	6.0	10.5	3.3	40	T30
M6 x 1	6.0	10.5	3.3	50	T30
M6 x 1	6.0	10.5	3.3	70	T30
M8 x 1.25	8.0	14.0	4.4	16	T40
M8 x 1.25	8.0	14.0	4.4	20	T40
M8 x 1.25	8.0	14.0	4.4	25	T40
M8 x 1.25	8.0	14.0	4.4	30	T40
M8 x 1.25	8.0	14.0	4.4	40	T40
M8 x 1.25	8.0	14.0	4.4	50	T40

Return to Product Table

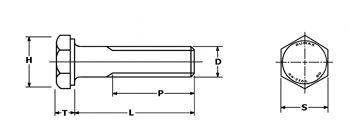

  HEXAGON HEAD MACHINE BOLTS
                  80M
Bumax® 88-M6S   * A4-SS 2343-316 HiMo
ENI.4436 * EN 24014, ISO 4014

HEXAGON HEAD MACHINE BOLTS
80M
Bumax® 88-M6S-H * A4-SS 2343-316L
ENI.4436 * EN 24017, ISO 4017

Size & Threads	Body Diameter D (mm)	Head Across Flats S (mm)	Head Across Points H (mm)	Head Thickness T (mm)	Length L (mm)	Thread Length P (mm)		Size & Threads	Body Diameter D (mm)	Head Across Flats S (mm)	Head Across Points H (mm)	Head Thickness T (mm)	Length L (mm)
M6 x 1	6.0	10	11.05	4.0	30	18		M4 x 0.7	4.0	7	7.66	2.8	6
M6 x 1	6.0	10	11.05	4.0	35	18		M4 x 0.7	4.0	7	7.66	2.8	8
M6 x 1	6.0	10	11.05	4.0	40	18		M4 x 0.7	4.0	7	7.66	2.8	10
M6 x 1	6.0	10	11.05	4.0	45	18		M4 x 0.7	4.0	7	7.66	2.8	12
M6 x 1	6.0	10	11.05	4.0	50	18		M4 x 0.7	4.0	7	7.66	2.8	16
M6 x 1	6.0	10	11.05	4.0	55	18		M4 x 0.7	4.0	7	7.66	2.8	20
M6 x 1	6.0	10	11.05	4.0	60	18		M4 x 0.7	4.0	7	7.66	2.8	25
M6 x 1	6.0	10	11.05	4.0	65	18		M4 x 0.7	4.0	7	7.66	2.8	30
M6 x 1	6.0	10	11.05	4.0	70	18		M5 x 0.08	5.0	8	8.79	3.5	10
M6 x 1	6.0	10	11.05	4.0	80	18		M5 x 0.08	5.0	8	8.79	3.5	12
M6 x 1	6.0	10	11.05	4.0	90	18		M5 x 0.08	5.0	8	8.79	3.5	14
M6 x 1	6.0	10	11.05	4.0	100	18		M5 x 0.08	5.0	8	8.79	3.5	16
M6 x 1	6.0	10	11.05	4.0	110	18		M5 x 0.08	5.0	8	8.79	3.5	20
M6 x 1	6.0	10	11.05	4.0	120	18		M5 x 0.08	5.0	8	8.79	3.5	25
M6 x 1	6.0	10	11.05	4.0	130	24		M5 x 0.08	5.0	8	8.79	3.5	30
M8 x 1.25	8.0	13	14.38	5.3	35	22		M5 x 0.08	5.0	8	8.79	3.5	35
M8 x 1.25	8.0	13	14.38	5.3	40	22		M5 x 0.08	5.0	8	8.79	3.5	40
M8 x 1.25	8.0	13	14.38	5.3	45	22		M5 x 0.08	5.0	8	8.79	3.5	45
M8 x 1.25	8.0	13	14.38	5.3	50	22		M5 x 0.08	5.0	8	8.79	3.5	50
M8 x 1.25	8.0	13	14.38	5.3	55	22		M6 x 1	6.0	10	11.05	4.0	10
M8 x 1.25	8.0	13	14.38	5.3	60	22		M6 x 1	6.0	10	11.05	4.0	12
M8 x 1.25	8.0	13	14.38	5.3	65	22		M6 x 1	6.0	10	11.05	4.0	14
M8 x 1.25	8.0	13	14.38	5.3	70	22		M6 x 1	6.0	10	11.05	4.0	16
M8 x 1.25	8.0	13	14.38	5.3	75	22		M6 x 1	6.0	10	11.05	4.0	20
M8 x 1.25	8.0	13	14.38	5.3	80	22		M6 x 1	6.0	10	11.05	4.0	22
M8 x 1.25	8.0	13	14.38	5.3	90	22		M6 x 1	6.0	10	11.05	4.0	25
M8 x 1.25	8.0	13	14.38	5.3	100	22		M6 x 1	6.0	10	11.05	4.0	30
M8 x 1.25	8.0	13	14.38	5.3	110	22		M6 x 1	6.0	10	11.05	4.0	35
M8 x 1.25	8.0	13	14.38	5.3	120	22		M6 x 1	6.0	10	11.05	4.0	40
M8 x 1.25	8.0	13	14.38	5.3	130	28		M6 x 1	6.0	10	11.05	4.0	45
M8 x 1.25	8.0	13	14.38	5.3	140	28		M6 x 1	6.0	10	11.05	4.0	50
M8 x 1.25	8.0	13	14.38	5.3	150	28		M6 x 1	6.0	10	11.05	4.0	60
M10 x 1.5	10	16	17.77	6.4	40	26		M6 x 1	6.0	10	11.05	4.0	70
M10 x 1.5	10	16	17.77	6.4	45	26		M6 x 1	6.0	10	11.05	4.0	80
M10 x 1.5	10	16	17.77	6.4	50	26		M8 x 1.25	8.0	13	14.38	5.3	10
M10 x 1.5	10	16	17.77	6.4	55	26		M8 x 1.25	8.0	13	14.38	5.3	12
M10 x 1.5	10	16	17.77	6.4	60	26		M8 x 1.25	8.0	13	14.38	5.3	14
M10 x 1.5	10	16	17.77	6.4	65	26		M8 x 1.25	8.0	13	14.38	5.3	16
M10 x 1.5	10	16	17.77	6.4	70	26		M8 x 1.25	8.0	13	14.38	5.3	20
M10 x 1.5	10	16	17.77	6.4	75	26		M8 x 1.25	8.0	13	14.38	5.3	22
M10 x 1.5	10	16	17.77	6.4	80	26		M8 x 1.25	8.0	13	14.38	5.3	25
M10 x 1.5	10	16	17.77	6.4	85	26		M8 x 1.25	8.0	13	14.38	5.3	30
M10 x 1.5	10	16	17.77	6.4	90	26		M8 x 1.25	8.0	13	14.38	5.3	35
M10 x 1.5	10	16	17.77	6.4	100	26		M8 x 1.25	8.0	13	14.38	5.3	40
M10 x 1.5	10	16	17.77	6.4	110	26		M8 x 1.25	8.0	13	14.38	5.3	45
M10 x 1.5	10	16	17.77	6.4	120	26		M8 x 1.25	8.0	13	14.38	5.3	50
M10 x 1.5	10	16	17.77	6.4	130	32		M8 x 1.25	8.0	13	14.38	5.3	60
M10 x 1.5	10	16	17.77	6.4	140	32		M8 x 1.25	8.0	13	14.38	5.3	70
M10 x 1.5	10	16	17.77	6.4	150	32		M8 x 1.25	8.0	13	14.38	5.3	80
M10 x 1.5	10	16	17.77	6.4	160	32		M10 x 1.5	10.0	16	17.77	6.4	12
M10 x 1.5	10	16	17.77	6.4	180	32		M10 x 1.5	10.0	16	17.77	6.4	16
M10 x 1.5	10	16	17.77	6.4	200	32		M10 x 1.5	10.0	16	17.77	6.4	20
M12 x 1.75	12	18	20.03	7.5	45	30		M10 x 1.5	10.0	16	17.77	6.4	25
M12 x 1.75	12	18	20.03	7.5	50	30		M10 x 1.5	10.0	16	17.77	6.4	30
M12 x 1.75	12	18	20.03	7.5	55	30		M10 x 1.5	10.0	16	17.77	6.4	35
M12 x 1.75	12	18	20.03	7.5	60	30		M10 x 1.5	10.0	16	17.77	6.4	40
M12 x 1.75	12	18	20.03	7.5	65	30		M10 x 1.5	10.0	16	17.77	6.4	45
M12 x 1.75	12	18	20.03	7.5	70	30		M10 x 1.5	10.0	16	17.77	6.4	50
M12 x 1.75	12	18	20.03	7.5	75	30		M10 x 1.5	10.0	16	17.77	6.4	60
M12 x 1.75	12	18	20.03	7.5	80	30		M10 x 1.5	10.0	16	17.77	6.4	70
M12 x 1.75	12	18	20.03	7.5	90	30		M10 x 1.5	10.0	16	17.77	6.4	80
M12 x 1.75	12	18	20.03	7.5	100	30		M10 x 1.5	10.0	16	17.77	6.4	90
M12 x 1.75	12	18	20.03	7.5	110	30		M10 x 1.5	10.0	16	17.77	6.4	100
M12 x 1.75	12	18	20.03	7.5	120	30	M10 x 1.5	10.0	16	17.77	6.4	110
M12 x 1.75	12	18	20.03	7.5	130	36	M10 x 1.5	10.0	16	17.77	6.4	120
M12 x 1.75	12	18	20.03	7.5	140	36	M10 x 1.5	10.0	16	17.77	6.4	130
M12 x 1.75	12	18	20.03	7.5	150	36	M12 x 1.75	12.0	18	20.03	7.5	20
M12 x 1.75	12	18	20.03	7.5	160	36	M12 x 1.75	12.0	18	20.03	7.5	25
M12 x 1.75	12	18	20.03	7.5	180	36	M12 x 1.75	12.0	18	20.03	7.5	30
M14 x 2	14	21	23.35	8.8	80	34	M12 x 1.75	12.0	18	20.03	7.5	35
M14 x 2	14	21	23.35	8.8	90	34	M12 x 1.75	12.0	18	20.03	7.5	40
M14 x 2	14	21	23.35	8.8	100	34	M12 x 1.75	12.0	18	20.03	7.5	45
M14 x 2	14	21	23.35	8.8	120	34	M12 x 1.75	12.0	18	20.03	7.5	50
M14 x 2	14	21	23.35	8.8	140	40	M12 x 1.75	12.0	18	20.03	7.5	60
M16 x 2	16	24	26.75	10.0	50	38	M12 x 1.75	12.0	18	20.03	7.5	70
M16 x 2	16	24	26.75	10.0	55	38	M12 x 1.75	12.0	18	20.03	7.5	80
M16 x 2	16	24	26.75	10.0	60	38	M12 x 1.75	12.0	18	20.03	7.5	90
M16 x 2	16	24	26.75	10.0	65	38	M12 x 1.75	12.0	18	20.03	7.5	100
M16 x 2	16	24	26.75	10.0	70	38	M14 x 2	14.0	21	23.36	8.8	30
M16 x 2	16	24	26.75	10.0	75	38	M14 x 2	14.0	21	23.36	8.8	40
M16 x 2	16	24	26.75	10.0	80	38	M14 x 2	14.0	21	23.36	8.8	50
M16 x 2	16	24	26.75	10.0	90	38	M14 x 2	14.0	21	23.36	8.8	60
M16 x 2	16	24	26.75	10.0	100	38	M14 x 2	14.0	21	23.36	8.8	70
M16 x 2	16	24	26.75	10.0	110	38	M16 x 2	16.0	24	26.75	10.0	25
M16 x 2	16	24	26.75	10.0	120	38	M16 x 2	16.0	24	26.75	10.0	30
M16 x 2	16	24	26.75	10.0	130	44	M16 x 2	16.0	24	26.75	10.0	35
M16 x 2	16	24	26.75	10.0	140	44	M16 x 2	16.0	24	26.75	10.0	40
M16 x 2	16	24	26.75	10.0	150	44	M16 x 2	16.0	24	26.75	10.0	45
M16 x 2	16	24	26.75	10.0	160	44	M16 x 2	16.0	24	26.75	10.0	50
M16 x 2	16	24	26.75	10.0	180	44	M16 x 2	16.0	24	26.75	10.0	60
M16 x 2	16	24	26.75	10.0	200	44	M16 x 2	16.0	24	26.75	10.0	70
M18 x 2.5	18	27	30.14	11.5	90	42	M16 x 2	16.0	24	26.75	10.0	80
M18 x 2.5	18	27	30.14	11.5	100	42	M16 x 2	16.0	24	26.75	10.0	120
M18 x 2.5	18	27	30.14	11.5	120	42	M18 x 2.5	18.0	27	30.14	11.5	40
M18 x 2.5	18	27	30.14	11.5	140	48	M18 x 2.5	18.0	27	30.14	11.5	50
M18 x 2.5	18	27	30.14	11.5	150	48	M18 x 2.5	18.0	27	30.14	11.5	60
M20 x 2.5	20	30	33.53	12.5	70	46	M18 x 2.5	18.0	27	30.14	11.5	70
M20 x 2.5	20	30	33.53	12.5	75	46	M18 x 2.5	18.0	27	30.14	11.5	80
M20 x 2.5	20	30	33.53	12.5	80	46	M20 x 2.5	20.0	30	33.53	12.5	35
M20 x 2.5	20	30	33.53	12.5	90	46	M20 x 2.5	20.0	30	33.53	12.5	40
M20 x 2.5	20	30	33.53	12.5	100	46	M20 x 2.5	20.0	30	33.53	12.5	45
M20 x 2.5	20	30	33.53	12.5	110	46	M20 x 2.5	20.0	30	33.53	12.5	50
M20 x 2.5	20	30	33.53	12.5	120	46	M20 x 2.5	20.0	30	33.53	12.5	55
M20 x 2.5	20	30	33.53	12.5	130	52	M20 x 2.5	20.0	30	33.53	12.5	60
M20 x 2.5	20	30	33.53	12.5	140	52	M20 x 2.5	20.0	30	33.53	12.5	65
M20 x 2.5	20	30	33.53	12.5	150	52	M20 x 2.5	20.0	30	33.53	12.5	70
M20 x 2.5	20	30	33.53	12.5	160	52	M20 x 2.5	20.0	30	33.53	12.5	75
M20 x 2.5	20	30	33.53	12.5	180	52	M20 x 2.5	20.0	30	33.53	12.5	80
M20 x 2.5	20	30	33.53	12.5	200	52	M20 x 2.5	20.0	30	33.53	12.5	100
M24 x 3	24	36	39.98	15.0	75	54	M20 x 2.5	20.0	30	33.53	12.5	150
M24 x 3	24	36	39.98	15.0	80	54	M24 x 3	24.0	36	39.98	15.0	40
M24 x 3	24	36	39.98	15.0	90	54	M24 x 3	24.0	36	39.98	15.0	45
M24 x 3	24	36	39.98	15.0	100	54	M24 x 3	24.0	36	39.98	15.0	50
M24 x 3	24	36	39.98	15.0	110	54	M24 x 3	24.0	36	39.98	15.0	60
M24 x 3	24	36	39.98	15.0	120	54	M24 x 3	24.0	36	39.98	15.0	65
M24 x 3	24	36	39.98	15.0	130	60	M24 x 3	24.0	36	39.98	15.0	70
M24 x 3	24	36	39.98	15.0	140	60	M24 x 3	24.0	36	39.98	15.0	75
M24 x 3	24	36	39.98	15.0	150	60	M24 x 3	24.0	36	39.98	15.0	80
M24 x 3	24	36	39.98	15.0	160	60	M24 x 3	24.0	36	39.98	15.0	90
M24 x 3	24	36	39.98	15.0	180	60	M24 x 3	24.0	36	39.98	15.0	100
M24 x 3	24	36	39.98	15.0	200	60	M24 x 3	24.0	36	39.98	15.0	120
M27 x 3	27	41	45.2	17	100	60	M27 x 3	27.0	41	45.20	17	50
M27 x 3	27	41	45.2	17	110	60	M27 x 3	27.0	41	45.20	17	60
M27 x 3	27	41	45.2	17	120	60	M27 x 3	27.0	41	45.20	17	70
M27 x 3	27	41	45.2	17	130	66	M27 x 3	27.0	41	45.20	17	80
M27 x 3	27	41	45.2	17	140	66	M27 x 3	27.0	41	45.20	17	90
M27 x 3	27	41	45.2	17	150	66	M27 x 3	27.0	41	45.20	17	100
M27 x 3	27	41	45.2	17	160	66	M27 x 3	27.0	41	45.20	17	120
M27 x 3	27	41	45.2	17	180	66	M27 x 3	27.0	41	45.20	17	130
M27 x 3	27	41	45.2	17	200	66	M27 x 3	27.0	41	45.20	17	140
M30 x 3.5	30	46	50.85	18.7	75	66	M27 x 3	27.0	41	45.20	17	150
M30 x 3.5	30	46	50.85	18.7	80	66	M27 x 3	27.0	41	45.20	17	160
M30 x 3.5	30	46	50.85	18.7	90	66	M30 x 3.5	30.0	46	50.85	18.7	60
M30 x 3.5	30	46	50.85	18.7	100	66	M30 x 3.5	30.0	46	50.85	18.7	70
M30 x 3.5	30	46	50.85	18.7	110	66	M30 x 3.5	30.0	46	50.85	18.7	80
M30 x 3.5	30	46	50.85	18.7	120	66	M30 x 3.5	30.0	46	50.85	18.7	90
M30 x 3.5	30	46	50.85	18.7	130	72	M30 x 3.5	30.0	46	50.85	18.7	100
M30 x 3.5	30	46	50.85	18.7	140	72	M36 x 4	36.0	55	60.79	22.5	80
M30 x 3.5	30	46	50.85	18.7	150	72	M36 x 4	36.0	55	60.79	22.5	90
M30 x 3.5	30	46	50.85	18.7	160	72	M36 x 4	36.0	55	60.79	22.5	100
M30 x 3.5	30	46	50.85	18.7	180	72	M36 x 4	36.0	55	60.79	22.5	120
M30 x 3.5	30	46	50.85	18.7	200	72	M36 x 4	36.0	55	60.79	22.5	130
M36 x 4	36	55	60.79	22.5	100	84	M36 x 4	36.0	55	60.79	22.5	140
M36 x 4	36	55	60.79	22.5	120	84	M36 x 4	36.0	55	60.79	22.5	150
M36 x 4	36	55	60.79	22.5	140	84
M36 x 4	36	55	60.79	22.5	160	84
M36 x 4	36	55	60.79	22.5	200	84

Return to Product Table

    HEXAGON HEAD MACHINE BOLTS
      100M
Bumax® 109-M6S   * A4-SS 2343-316L HiMo
ENI.4436 * EN 24014, ISO 4014

HEXAGON HEAD MACHINE BOLTS
                100M
Bumax® 109-M6S * A4-SS 2343-316L HiMo
ENI.4436 * EN 24017, ISO 4017

Size & Threads	Body Diameter D (mm)	Head Across Flats S (mm)	Head Across Points H (mm)	Head Thickness T (mm)	Length L (mm)	Thread Length P (mm)	Size & Threads	Body Diameter D (mm)	Head Across Flats S (mm)	Head Across Points H (mm)	Head Thickness T (mm)	Length L (mm)
M6 x 1	6.0	10	11.05	4.0	35	18	M6 x 1	6.0	10	11.05	4.0	20
M6 x 1	6.0	10	11.05	4.0	40	18	M6 x 1	6.0	10	11.05	4.0	25
M6 x 1	6.0	10	11.05	4.0	45	18	M6 x 1	6.0	10	11.05	4.0	30
M6 x 1	6.0	10	11.05	4.0	50	18	M8 x 1.25	8.0	13	14.38	5.3	20
M6 x 1	6.0	10	11.05	4.0	55	18	M8 x 1.25	8.0	13	14.38	5.3	30
M6 x 1	6.0	10	11.05	4.0	60	18	M10 x 1.5	10.0	16	17.77	6.4	20
M6 x 1	6.0	10	11.05	4.0	70	18	M10 x 1.5	10.0	16	17.77	6.4	30
M6 x 1	6.0	10	11.05	4.0	80	18	M10 x 1.5	10.0	16	17.77	6.4	40
M8 x 1.25	8.0	13	14.38	5.3	40	22	M12 x 1.75	12.0	18	20.03	7.5	30
M8 x 1.25	8.0	13	14.38	5.3	45	22	M12 x 1.75	12.0	18	20.03	7.5	40
M8 x 1.25	8.0	13	14.38	5.3	50	22	M16 x 2	16.0	24	26.75	10.0	30
M8 x 1.25	8.0	13	14.38	5.3	55	22	M16 x 2	16.0	24	26.75	10.0	40
M8 x 1.25	8.0	13	14.38	5.3	60	22	M16 x 2	16.0	24	26.75	10.0	45
M8 x 1.25	8.0	13	14.38	5.3	70	22	M16 x 2	16.0	24	26.75	10.0	50
M8 x 1.25	8.0	13	14.38	5.3	80	22	M16 x 2	16.0	24	26.75	10.0	55
M10 x 1.5	10	16	17.77	6.4	45	26	M16 x 2	16.0	24	26.75	10.0	60
M10 x 1.5	10	16	17.77	6.4	50	26
M10 x 1.5	10	16	17.77	6.4	55	26
M10 x 1.5	10	16	17.77	6.4	60	26
M10 x 1.5	10	16	17.77	6.4	65	26
M10 x 1.5	10	16	17.77	6.4	70	26
M10 x 1.5	10	16	17.77	6.4	80	26
M10 x 1.5	10	16	17.77	6.4	90	26
M10 x 1.5	10	16	17.77	6.4	100	26
M12 x 1.75	12	18	20.03	7.5	45	30
M12 x 1.75	12	18	20.03	7.5	50	30
M12 x 1.75	12	18	20.03	7.5	55	30
M12 x 1.75	12	18	20.03	7.5	60	30
M12 x 1.75	12	18	20.03	7.5	70	30
M12 x 1.75	12	18	20.03	7.5	80	30
M12 x 1.75	12	18	20.03	7.5	90	30
M12 x 1.75	12	18	20.03	7.5	100	30
M12 x 1.75	12	18	20.03	7.5	120	30
M16 x 2	16	24	26.75	10.0	70	38
M16 x 2	16	24	26.75	10.0	80	38
M16 x 2	16	24	26.75	10.0	90	38
M16 x 2	16	24	26.75	10.0	100	38
M16 x 2	16	24	26.75	10.0	120	38

Return to Product Table

HEXAGON HEAD MACHINE BOLTS
        100M
Bumax® 109-M6S   * A4-SS 2343-316L HiMo
ENI.4436 * EN 24014, ISO 4014

Size & Threads	Body Diameter D (in)	Head Across Flats S (in)	Head Across Points H (in)	Head Thickness T (in)	Length L (in)	Thread Length P (in)
1/4 - 20	0.250	0.437	0.488	0.157	0.5	0.500
1/4 - 20	0.250	0.437	0.488	0.157	0.625	0.625
1/4 - 20	0.250	0.437	0.488	0.157	0.75	0.748
1/4 - 20	0.250	0.437	0.488	0.157	1.0	0.748
1/4 - 20	0.250	0.437	0.488	0.157	1.25	0.748
1/4 - 20	0.250	0.437	0.488	0.157	1.5	0.748
1/4 - 20	0.250	0.437	0.488	0.157	1.75	0.748
1/4 - 20	0.250	0.437	0.488	0.157	2.0	0.748
1/4 - 20	0.250	0.437	0.488	0.157	2.5	0.748
1/4 - 20	0.250	0.437	0.488	0.157	3.0	0.748
5/16 - 18	0.3125	0.500	0.557	0.205	0.5	0.500
5/16 - 18	0.3125	0.500	0.557	0.205	0.625	0.625
5/16 - 18	0.3125	0.500	0.557	0.205	0.75	0.750
5/16 - 18	0.3125	0.500	0.557	0.205	1.0	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	1.25	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	1.5	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	1.75	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	2.0	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	2.5	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	3.0	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	3.5	0.866
5/16 - 18	0.3125	0.500	0.557	0.205	4.0	0.866
3/8 - 16	0.375	0.563	0.628	0.236	0.625	0.984
3/8 - 16	0.375	0.563	0.628	0.236	0.75	0.984
3/8 - 16	0.375	0.563	0.628	0.236	0.875	0.984
3/8 - 16	0.375	0.563	0.628	0.236	1.0	0.984
3/8 - 16	0.375	0.563	0.628	0.236	1.25	0.984
3/8 - 16	0.375	0.563	0.628	0.236	1.5	0.984
3/8 - 16	0.375	0.563	0.628	0.236	1.75	0.984
3/8 - 16	0.375	0.563	0.628	0.236	2.0	0.984
3/8 - 16	0.375	0.563	0.628	0.236	2.25	0.984
3/8 - 16	0.375	0.563	0.628	0.236	2.5	0.984
3/8 - 16	0.375	0.563	0.628	0.236	2.75	0.984
3/8 - 16	0.375	0.563	0.628	0.236	3.0	0.984
3/8 - 16	0.375	0.563	0.628	0.236	3.25	0.984
3/8 - 16	0.375	0.563	0.628	0.236	3.5	0.984
3/8 - 16	0.375	0.563	0.628	0.236	4.0	0.984
3/8 - 16	0.375	0.563	0.628	0.236	4.5	0.984
3/8 - 16	0.375	0.563	0.628	0.236	5.0	0.984
3/8 - 16	0.375	0.563	0.628	0.236	5.5	0.984
3/8 - 16	0.375	0.563	0.628	0.236	6.0	0.984
1/2 - 13	0.500	0.750	0.840	0.311	1.0	1.000
1/2 - 13	0.500	0.750	0.840	0.311	1.25	1.250
1/2 - 13	0.500	0.750	0.840	0.311	1.5	1.260
1/2 - 13	0.500	0.750	0.840	0.311	1.75	1.260
1/2 - 13	0.500	0.750	0.840	0.311	2.0	1.260
1/2 - 13	0.500	0.750	0.840	0.311	2.25	1.260
1/2 - 13	0.500	0.750	0.840	0.311	2.5	1.260
1/2 - 13	0.500	0.750	0.840	0.311	2.75	1.260
1/2 - 13	0.500	0.750	0.840	0.311	3.0	1.260
1/2 - 13	0.500	0.750	0.840	0.311	3.25	1.260
1/2 - 13	0.500	0.750	0.840	0.311	3.5	1.260
1/2 - 13	0.500	0.750	0.840	0.311	4.0	1.260
1/2 - 13	0.500	0.750	0.840	0.311	4.5	1.260
1/2 - 13	0.500	0.750	0.840	0.311	5.0	1.260
1/2 - 13	0.500	0.750	0.840	0.311	5.5	1.260
1/2 - 13	0.500	0.750	0.840	0.311	6.0	1.260
5/8 - 11	0.625	0.938	1.051	0.390	1.0	1.000
5/8 - 11	0.625	0.938	1.051	0.390	1.25	1.250
5/8 - 11	0.625	0.938	1.051	0.390	1.5	1.496
5/8 - 11	0.625	0.938	1.051	0.390	1.75	1.496
5/8 - 11	0.625	0.938	1.051	0.390	2.0	1.496
5/8 - 11	0.625	0.938	1.051	0.390	2.25	1.496
5/8 - 11	0.625	0.938	1.051	0.390	2.5	1.496
5/8 - 11	0.625	0.938	1.051	0.390	2.75	1.496
5/8 - 11	0.625	0.938	1.051	0.390	3.0	1.496
5/8 - 11	0.625	0.938	1.051	0.390	3.25	1.496
5/8 - 11	0.625	0.938	1.051	0.390	3.5	1.496
5/8 - 11	0.625	0.938	1.051	0.390	4.0	1.496
5/8 - 11	0.625	0.938	1.051	0.390	4.5	1.496
5/8 - 11	0.625	0.938	1.051	0.390	5.0	1.496
5/8 - 11	0.625	0.938	1.051	0.390	5.5	1.496
5/8 - 11	0.625	0.938	1.051	0.390	6.0	1.496
3/4 - 10	0.750	1.125	1.254	0.469	1.25	1.250
3/4 - 10	0.750	1.125	1.254	0.469	1.5	1.500
3/4 - 10	0.750	1.125	1.254	0.469	1.75	1.732
3/4 - 10	0.750	1.125	1.254	0.469	2.0	1.732
3/4 - 10	0.750	1.125	1.254	0.469	2.25	1.732
3/4 - 10	0.750	1.125	1.254	0.469	2.5	1.732
3/4 - 10	0.750	1.125	1.254	0.469	2.75	1.732
3/4 - 10	0.750	1.125	1.254	0.469	3.0	1.732
3/4 - 10	0.750	1.125	1.254	0.469	3.25	1.732
3/4 - 10	0.750	1.125	1.254	0.469	3.5	1.732
3/4 - 10	0.750	1.125	1.254	0.469	4.0	1.732
3/4 - 10	0.750	1.125	1.254	0.469	4.5	1.732
3/4 - 10	0.750	1.125	1.254	0.469	5.0	1.732
3/4 - 10	0.750	1.125	1.254	0.469	5.5	1.732
3/4 - 10	0.750	1.125	1.254	0.469	6.0	1.732
3/4 - 10	0.750	1.125	1.254	0.469	6.5	2.008
3/4 - 10	0.750	1.125	1.254	0.469	7.0	2.008
7/8 - 9	0.875	1.3125	1.465	0.547	1.5	1.500
7/8 - 9	0875	1.3125	1.465	0.547	2.0	2.000
7/8 - 9	0.875	1.3125	1.465	0.547	2.5	2.008
7/8 - 9	0875	1.3125	1.465	0.547	2.75	2.008
7/8 - 9	0.875	1.3125	1.465	0.547	3.0	2.008
7/8 - 9	0875	1.3125	1.465	0.547	3.25	2.008
7/8 - 9	0.875	1.3125	1.465	0.547	3.5	2.008
7/8 - 9	0875	1.3125	1.465	0.547	4.0	2.008
7/8 - 9	0.875	1.3125	1.465	0.547	4.5	2.008
7/8 - 9	0875	1.3125	1.465	0.547	5.0	2.008
7/8 - 9	0.875	1.3125	1.465	0.547	5.5	2.008
7/8 - 9	0.875	1.3125	1.465	0.547	6.0	2.008
1 - 8	1.000	1.5000	1.675	0.610	2.0	2.244
1 - 8	1.000	1.5000	1.675	0.610	2.25	2.244
1 - 8	1.000	1.5000	1.675	0.610	2.5	2.244
1 - 8	1.000	1.5000	1.675	0.610	3.0	2.244
1 - 8	1.000	1.5000	1.675	0.610	3.5	2.244
1 - 8	1.000	1.5000	1.675	0.610	4.0	2.244
1 - 8	1.000	1.5000	1.675	0.610	4.5	2.244
1 - 8	1.000	1.5000	1.675	0.610	5.0	2.244
1 - 8	1.000	1.5000	1.675	0.610	5.5	2.244
1 - 8	1.000	1.5000	1.675	0.610	6.0	2.244

Return to Product Table

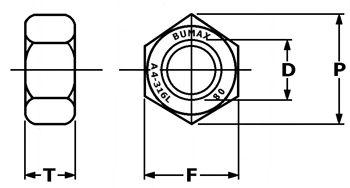

HEX NUTS 80M
Bumax® 88-M6M * A4-SS 2343-316L HiMo
ENI.4436 * EN 24032, ISO 4032

HEX NUTS
100M
Bumax® 109-M6M * A4-SS 2343-316L HiMo
ENI.4436 * EN 24032, ISO 4032

Size & Threads	Thread Diameter d (mm)	Nut Across Flats S (mm)	Nut Across Points H (mm)	Nut Thickness T (mm)	Size & Threads	Thread Diameter d (mm)	Nut Across Flats S (mm)	Nut Across Points H (mm)	Nut Thickness T (mm)
M6 x 1	6.0	10	11.1	5.2	M6 x 1	6.0	10	11.1	5.2
M8 x 1.25	8.0	13	14.5	6.8	M8 x 1.25	8.0	13	14.5	6.8
M10 x 1.5	10.0	16	17.8	8.4	M10 x 1.5	10.0	16	17.8	8.4
M12 x 1.75	12.0	18	20.0	10.8	M12 x 1.75	12.0	18	20.0	10.8
M14 x 2	14.0	21	23.3	12.8	M16 x 2	16.0	24	26.7	14.8
M16 x 2	16.0	24	26.7	14.8
M18 x 3	18.0	27	30.0	15.8
M20 x 2.5	20.0	30	33.3	18.0
M24 x 3	24.0	36	40.0	21.5

Return to Product Table

                    HEX NUTS
           80M
Bumax® 88-U6M   * A4-SS 2343-316L HiMo
ENI.4436 * SS 1989, (ANSI B18.2)

Size & Threads	Thread Diameter d (mm)	Nut Across Flats S (mm)	Nut Across Points H (mm)	Nut Thickness T (mm)
1/4 - 20	0.250	0.438	0.488	0.220
5/16 - 18	0.3125	0.500	0.557	0.264
3/8 - 16	0.375	0.563	0.628	0.327
7/16 - 14	0.4375	0.689	0.768	0.374
1/2 - 13	0.500	0.752	0.840	0.437
5/8 - 11	0.625	0.937	1.051	0.547
3/4 - 10	0.750	1.126	1.254	0.642
7/8 - 9	0.875	1.311	1.465	0.752
1 - 8	1.000	1.500	1.675	0.858

Return to Product Table

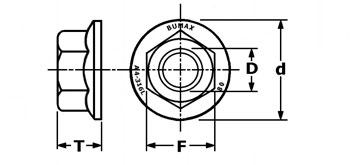

   HEX FLANGED NUTS
           80M
Bumax® 88-MF6M   * A4-SS 2343-316L HiMo
ENI.4436 * DIN 6923, ISO 4161

Size & Threads	Thread Diameter d (mm)	Nut Across Flats S (mm)	Nut Across Points H (mm)	Nut Thickness T (mm)	Flange Diameter (mm)
M6 x 1	6.0	10	11.05	6	14.2
M8 x 1.25	8.0	13	14.38	8	17.9
M10 x 1.5	10.0	15	16.64	10	21.8
M12 x 1.75	12.0	18	20.03	12	26.0
M16 x 2	16.0	24	26.75	16	34.5
M20 x 2.5	20.0	30	32.95	20	42.8

Return to Product Table

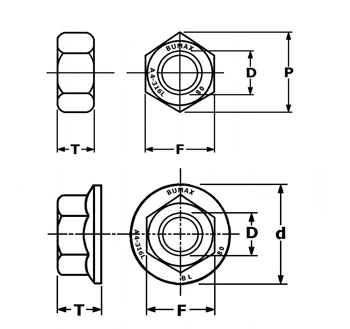

             HEX LOCKNUTS
80M
Bumax® Lock 88   * A4-SS 2343-316L HiMo
ENI.4436

       HEX FLANGED, LOCKNUTS
80M
Bumax® Lock 88   * A4-SS 2343-316L HiMo
ENI.4436

Size & Threads	Thread Diameter d (mm)	Nut Across Flats S (mm)	Nut Across Points H (mm)	Nut Thickness T (mm)	Size & Threads	Thread Diameter d (mm)	Nut Across Flats S (mm)	Nut Across Points H (mm)	Nut Thickness T (mm)	Flange Diameter (mm)
M12 x 1.75	12.0	18	20.03	12	M6 x 1	6.0	10	11.05	6	14.2
M16 x 2	16.0	24	26.75	16	M8 x 1.25	8.0	13	14.38	8	17.9
M20 x 2.5	20.0	30	32.95	20	M10 x 1.5	10.0	15	16.64	10	21.8
					M12 x 1.75	12.0	18	20.03	12	26.0

Return to Product Table

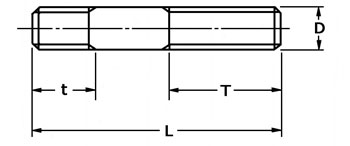

             STUD
80M
Bumax® 88-PS   * A4-SS 2343-316L HiMo
ENI.4436 * DIN 938

      STUD
80M
Bumax® 88-MPS   * A4-SS 2343-316L HiMo
ENI.4436 * SS 1460

Size & Threads	Thread Diameter d (mm)	Overall Length L (mm)	Short Thread Length t (mm)	Long Thread Length T (mm)	Size & Threads	Thread Diameter d (mm)	Overall Length L (mm)	Short Thread Length t (mm)	Long Thread Length T (mm)
M6 x 1	6.0	25	6	18	M6 x 1	6.0	30	10	inquire
M6 x 1	6.0	30	6	18	M6 x 1	6.0	40	10	inquire
M6 x 1	6.0	35	6	18	M6 x 1	6.0	50	10	inquire
M8 x 1.25	8.0	20	8	12	M8 x 1.25	8.0	35	12	inquire
M8 x 1.25	8.0	30	8	22	M8 x 1.25	8.0	40	12	inquire
M8 x 1.25	8.0	35	8	22	M8 x 1.25	8.0	50	12	inquire
M8 x 1.25	8.0	40	8	22	M8 x 1.25	8.0	60	12	inquire
M8 x 1.25	8.0	50	8	22	M10 x 1.5	10.0	40	15	inquire
M10 x 1.5	10.0	20	10	10	M10 x 1.5	10.0	50	15	inquire
M10 x 1.5	10.0	25	10	15	M10 x 1.5	10.0	60	15	inquire
M10 x 1.5	10.0	30	10	20	M10 x 1.5	10.0	70	15	inquire
M10 x 1.5	10.0	40	10	26	M12 x 1.75	12.0	40	17	inquire
M10 x 1.5	10.0	45	10	26	M12 x 1.75	12.0	50	17	inquire
M10 x 1.5	10.0	50	10	26	M12 x 1.75	12.0	60	17	inquire
M10 x 1.5	10.0	60	10	26	M12 x 1.75	12.0	70	17	inquire
M10 x 1.5	10.0	65	10	26	M16 x 2	16.0	50	22	inquire
M12 x 1.75	12.0	25	12	13	M16 x 2	16.0	60	22	inquire
M12 x 1.75	12.0	30	12	18	M16 x 2	16.0	70	22	inquire
M12 x 1.75	12.0	35	12	23	M16 x 2	16.0	80	22	inquire
M12 x 1.75	12.0	40	12	28	M20 x 2.5	20.0	70	27	inquire
M12 x 1.75	12.0	45	12	30	M20 x 2.5	20.0	80	27	inquire
M12 x 1.75	12.0	50	12	30	M20 x 2.5	20.0	100	27	inquire
M12 x 1.75	12.0	60	12	30
M16 x 2	16.0	35	16	19
M16 x 2	16.0	40	16	24
M16 x 2	16.0	45	16	29
M16 x 2	16.0	50	16	34
M16 x 2	16.0	55	16	38
M16 x 2	16.0	60	16	38
M16 x 2	16.0	65	16	38
M16 x 2	16.0	70	16	38
M16 x 2	16.0	135	16	44
M16 x 2	16.0	160	16	44
M20 x 2.5	20.0	40	20	20
M20 x 2.5	20.0	50	20	30
M20 x 2.5	20.0	60	20	40
M20 x 2.5	20.0	80	20	46

Return to Product Table

              THREADED ROD
80M
Bumax® 88-MHGS   * A4-SS 2343-316L HiMo
ENI.4436 * DIN 976

Size & Threads	Thread Diameter d (mm)	Overall Length L (m)
M5 x 0.8	5.0	1
M6 x 1	6.0	1
M8 x 1.25	8.0	1
M10 x 1.5	10.0	1
M12 x 1.75	12.0	1
M14 x 2	14.0	1
M16 x 2	16.0	1
M18 x 2.5	18.0	1
M20 x 2.5	20.0	1
M22 x 2.5	22.0	1
M24 x 3	24.0	1
M27 x 3	27.0	1
M30 x 3.5	30.0	1
M33 x 3.5	33.0	1
M36 x 4	36.0	1

Return to Product Table

          WASHER (Flat)
Hardness HV 200
Bumax® 88-RB   * A4-SS 2343-316L HiMo
ENI.4436 * DIN 125, ISO 7089, SS 70

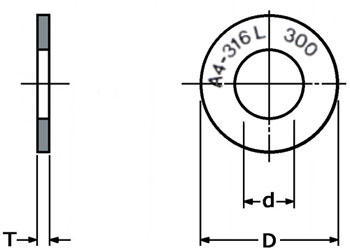

         WASHER (Flat)
Hardness HV 300
Bumax® 109-HRB   * A4-SS 2343-316L HiMo
ENI.4436 * DIN 125, ISO 7089

Hole Diameter d (mm)	Outside Diameter D (mm)	Head Thickness T (mm)	For Metric Use (mm)	For Imperial Use Size (in)	Hole Diameter d (mm)	Outside Diameter D (mm)	Head Thickness T (mm)	For Metric Use (mm)	For Imperial Use Size (in)
5.3	10	1.0	M5	N° 10	6.4	12	1.6	M6
6.4	12	1.6	M6		8.4	16	1.6	M8	5/16
6.7	14	1.5		1/4	10.5	20	2.0	M10
8.4	16	1.6	M8	5/16	13.0	24	2.5	M12
10.0	18	2.0		3/8
10.5	20	2.0	M10
13.0	24	2.5	M12
13.5	24	2.0		1/2
15	28	2.5	M14
17	30.0	3.0	M16	5/8
19	34.0	3.0	M18
21	37.0	3.0	M20	3/4
23	39.0	3.0	M22	7/8
25	44.0	4.0	M24
26	45.0	4.0		1

Return to Product Table

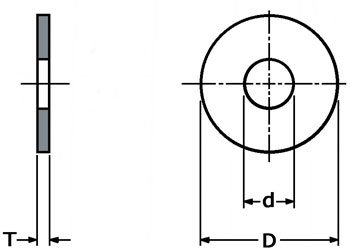

             WASHER (Flat, Large Area)
Hardness HV 200
Bumax® RBS   * A4-SS 2343-316L HiMo
ENI.4436 * EN/ISO 7093, DIN 9021

Hole Diameter d (mm)	Outside Diameter D (mm)	Head Thickness T (mm)	For Metric Use (mm)	For Imperial Use Size (in)
6.4	18	1.6	M6
8.4	24	2.0	M8	5/16
10.5	30	2.5	M10
13.0	37	3.0	M12
